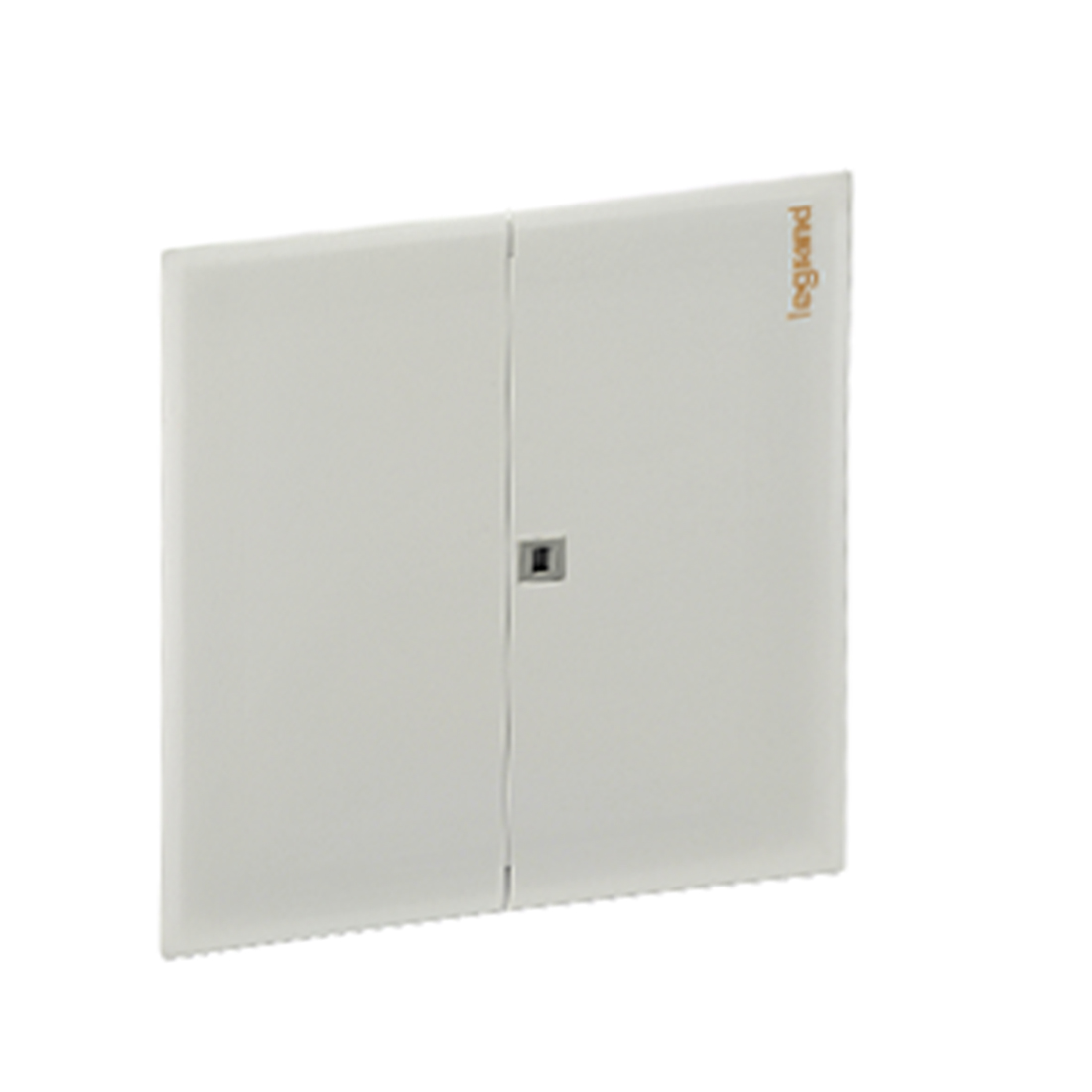

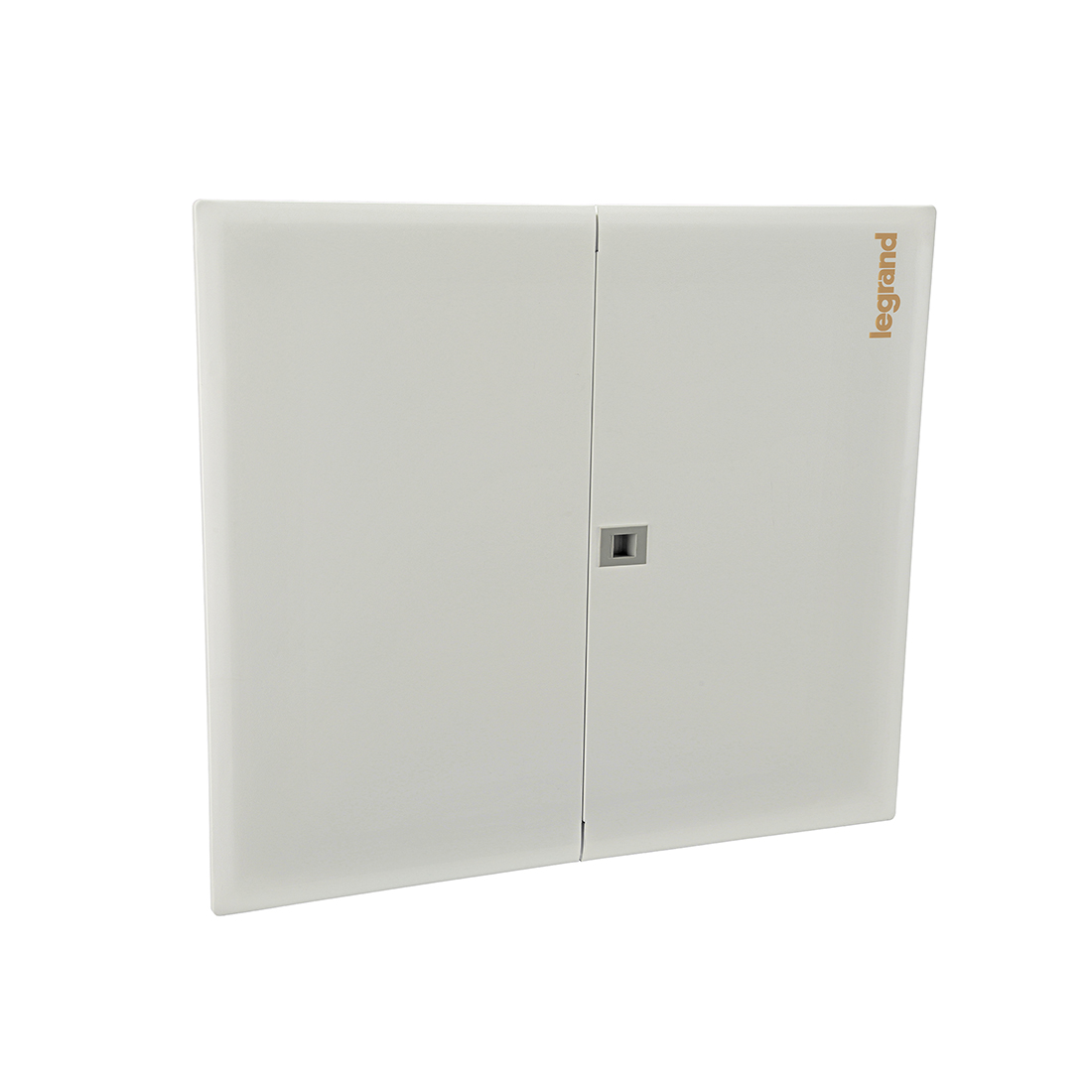

Ekinox 7 Segment Distribution Board
Ekinox 7 Segment Distribution Board
Ekinox 7 Segment Distribution Board
Ekinox 7 Segment Distribution Board
Ekinox 7 Segment Distribution Board
Ekinox 7 Segment Distribution Board

Ekinox 7 Segment Distribution Board

Segmented three-phase distribution board designed with dedicated compartments for incomer, sub-incomer, and outgoing circuits, providing enhanced safety and organized cable management.

  • IEC 61439-3 compliant
  • Separate compartment for incomer, sub-incomer and outgoing devices
  • Suitable for flush mounting and surface mounting
  • 100A copper busbar for each phase
  • Neutral bar, earth bar and cable ties included
  • Fully insulated busbar and shrouded neutral bars
  • Provision for FP MCB / Isolator / RCCB / RCBO as incomer, DP RCCB / RCBO as sub-incomer and SP MCBs as outgoing
  • Supplied with wire set
  • Phase segmentation between incomer and outgoing sections

Product Type TPN 7 Segment Distribution Board
Number of Ways 4W / 6W / 8W / 12W
Protection Rating IP30 / IP43
Door Options Single Door / Double Door
Device Compatibility MCB & MCCB
Maximum MCCB Rating Up to 160A
Busbar 100A Copper Busbar per Phase
Standard IEC 61439-3
