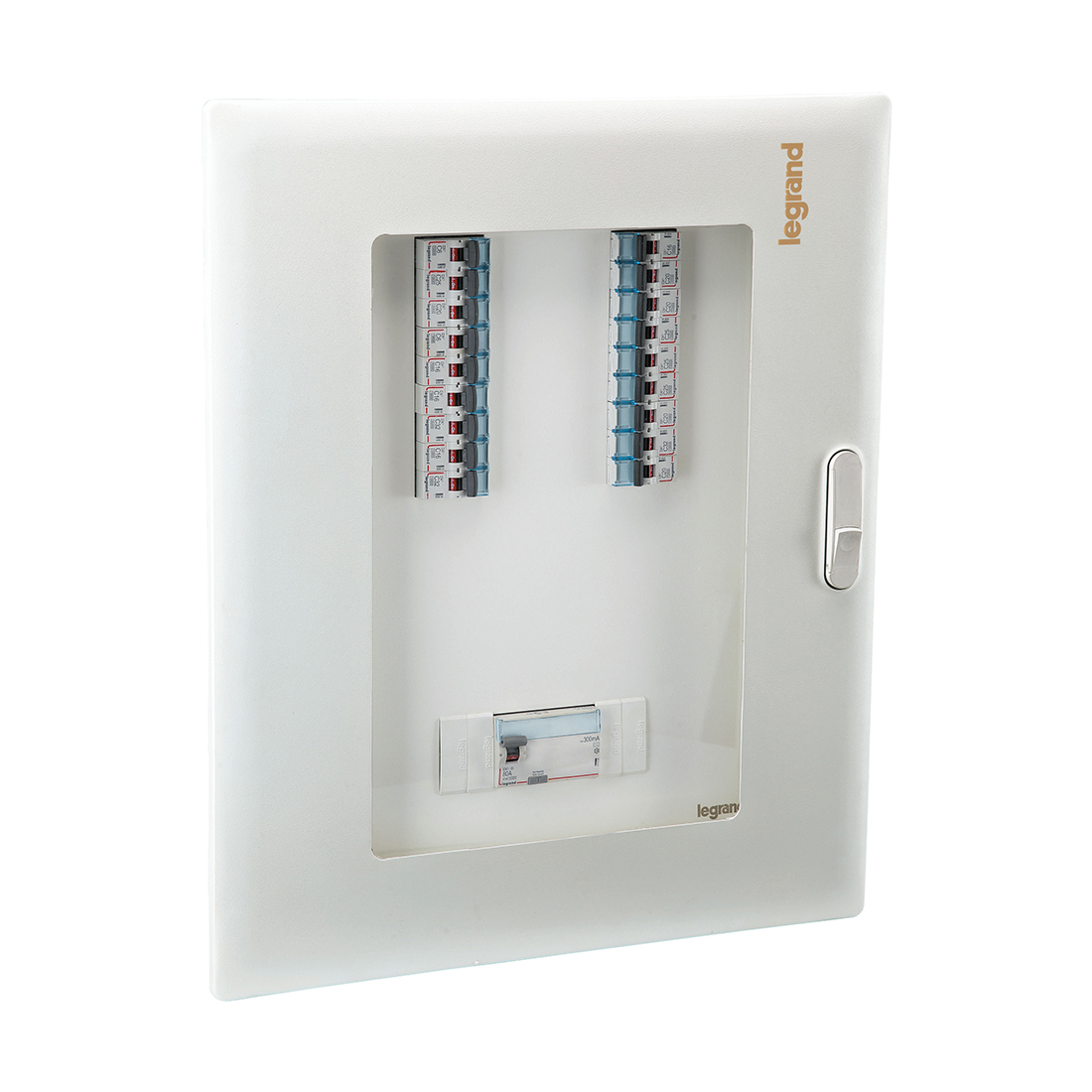

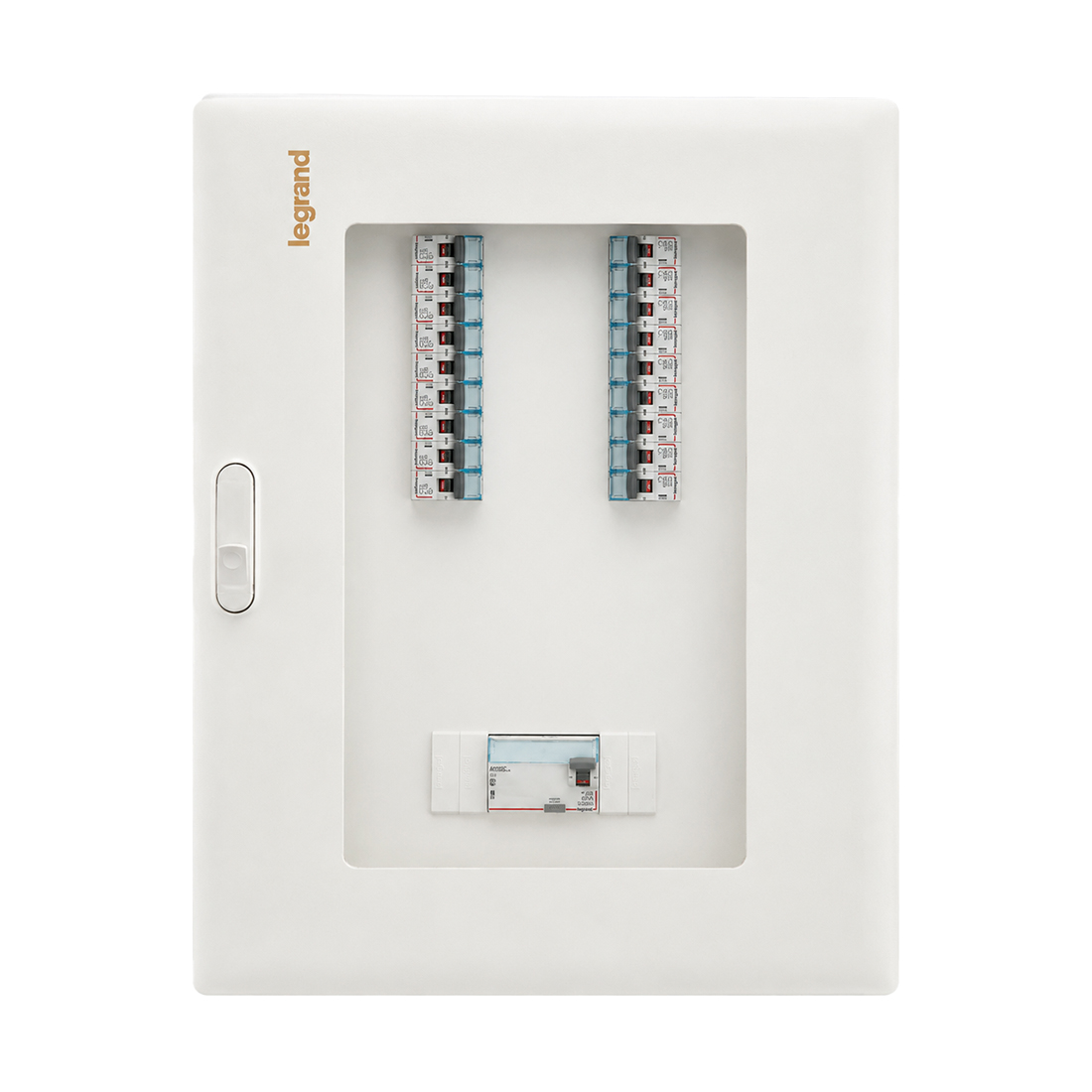

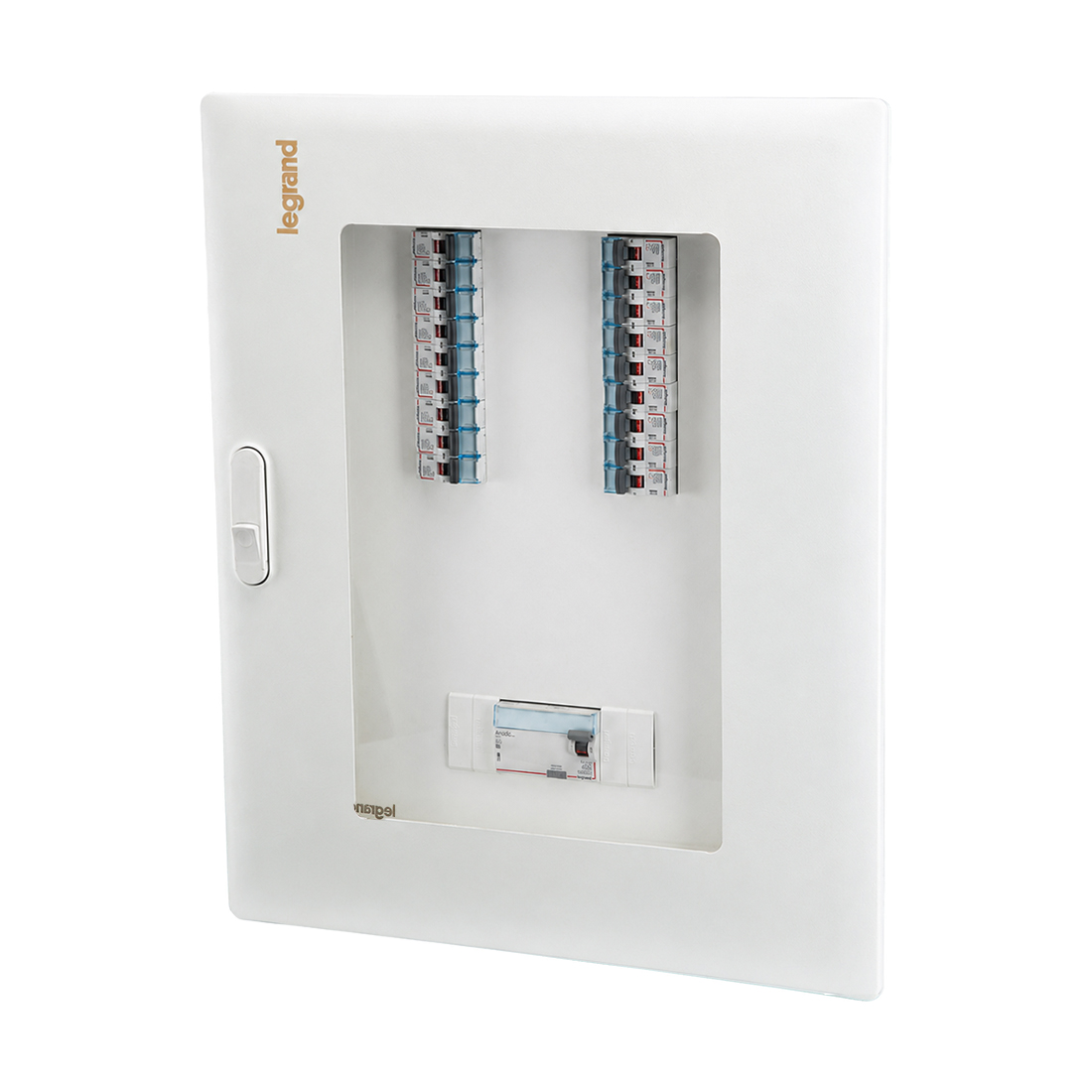

The Ekinox VTPN Distribution Board is a premium three-phase distribution board designed for commercial and industrial electrical installations. It offers multiple enclosure configurations with IP-rated protection, copper busbars, and flexible mounting options for safe, reliable, and efficient power distribution.
| Product Type | VTPN Distribution Board |
|---|---|
| Range | Ekinox VTPN DB |
| Number of Ways | 4W / 6W / 8W / 12W |
| Protection Rating | IP30 / IP43 / IP54 |
| Door Options | Single Door / Double Door / Acrylic Door |
| Mounting Type | Flush Mounting & Surface Mounting |
| Busbar | 100A Copper Busbar (250A for MCCB variants) |
| Standard | IEC 61439-3 |
| Maximum MCCB Capacity | Up to 250A |
| Incomer Options | FP MCB / Isolator / RCCB / RCBO / DPX 160-250 MCCB |
| Outgoing | SP/TP MCBs |
