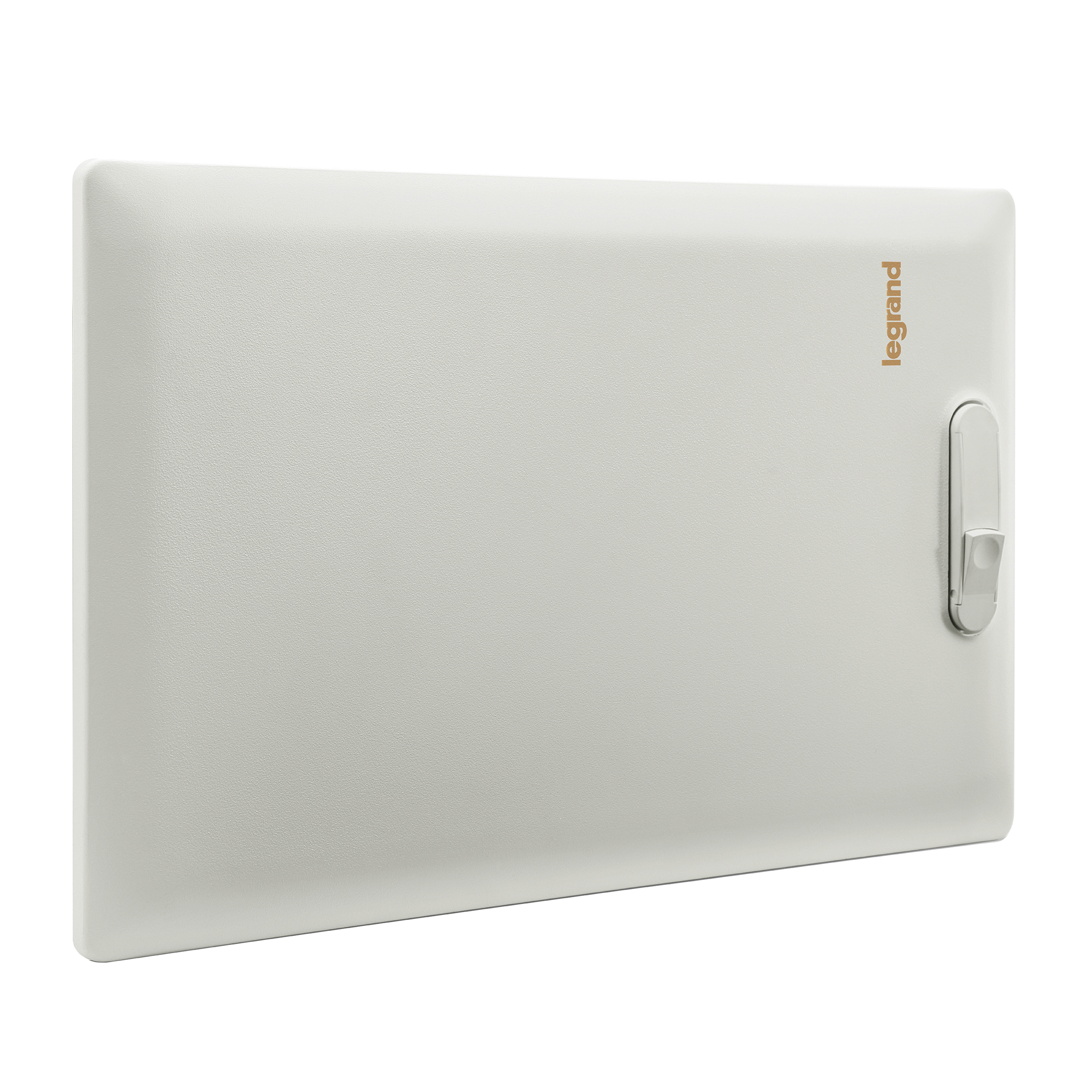

Ekinox ETPN Distribution Board
Ekinox ETPN Distribution Board
Ekinox ETPN Distribution Board
Ekinox ETPN Distribution Board
Ekinox ETPN Distribution Board
Ekinox ETPN Distribution Board

Ekinox ETPN Distribution Board

High-capacity three-phase distribution board engineered for residential, commercial, and industrial electrical systems with flexible installation and future expansion capabilities.

  • IEC 61439-3 compliant
  • Suitable for flush mounting and surface mounting
  • 100A copper busbar for each phase
  • Neutral bar, earth bar and cable ties included
  • Fully insulated busbar and shrouded neutral bars
  • Improved pan assembly for easy installation
  • Prefitted masking sheet
  • Reversible door for IP43 & IP54 variants
  • Provision for FP MCB / Isolator / RCCB / RCBO as incomer and SP MCBs as outgoing
  • Supplied with wire set
  • Can be converted to PPI DB using conversion kit

Product Type ETPN Distribution Board
Number of Ways 4W / 8W / 12W / 16W / 18W / 20W
Protection Rating IP30 / IP43 / IP54
Door Options Single Door / Double Door / Acrylic Door
Mounting Type Flush & Surface Mounting
Busbar 100A Copper Busbar per Phase
Standard IEC 61439-3
Conversion Option Convertible to PPI DB using Conversion Kit
